The Molten Aluminum Filter Box is designed for efficient aluminum melt filtration in aluminum casting plants, foundries, and extrusion production lines. It provides a stable installation chamber for ceramic foam filters, helping remove non-metallic inclusions, oxides, and impurities from molten aluminum before casting.
With optimized internal flow channels and high-temperature resistant materials, our aluminum filter boxes ensure smooth aluminum flow, reduce turbulence, and improve the cleanliness and mechanical properties of final aluminum products.
Longzhyi provides customized aluminum filtration solutions according to your casting process, flow capacity, and production requirements.
The internal structure of the filter box is engineered to provide uniform molten aluminum distribution.
Benefits:
Manufactured with premium refractory materials, the filter box can withstand continuous exposure to molten aluminum temperatures.
Features:
Different casting applications require different filtration capacities.
We provide customized solutions including:
The filter box structure is designed for convenient operation:
Our molten aluminum filter boxes are widely used in:
| Item | Specification |
|---|---|
| Product Name | Molten Aluminum Filter Box |
| Application | Aluminum Melt Filtration |
| Filter Type | Ceramic Foam Filter |
| Material | High-performance refractory material |
| Working Temperature | 700–800℃ (Customized) |
| Filter Chamber | Single / Double / Multi Chamber |
| Installation | Customized according to production line |
| Aluminum Capacity | Customized |

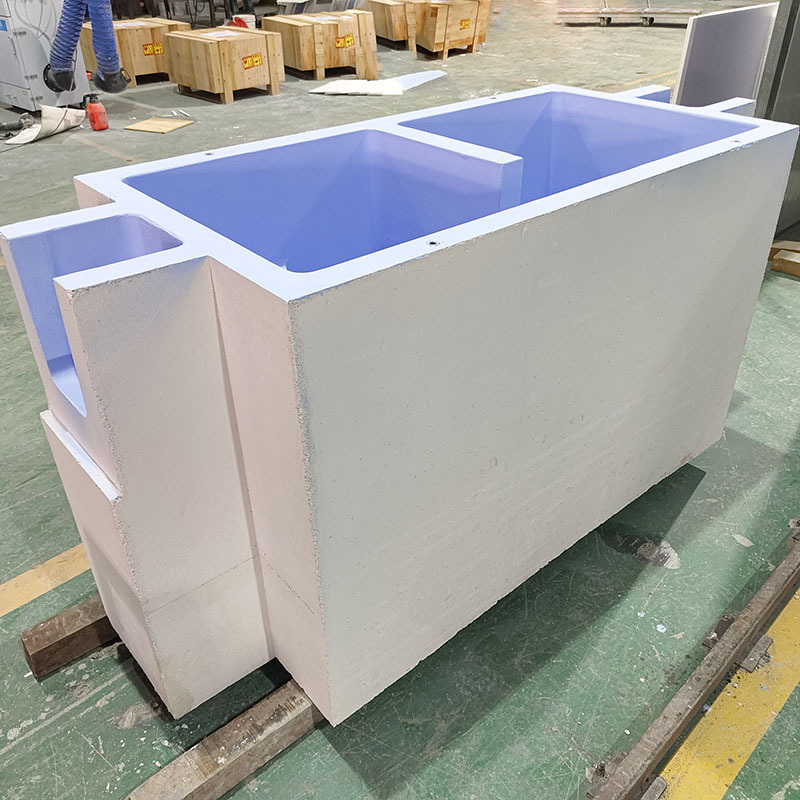

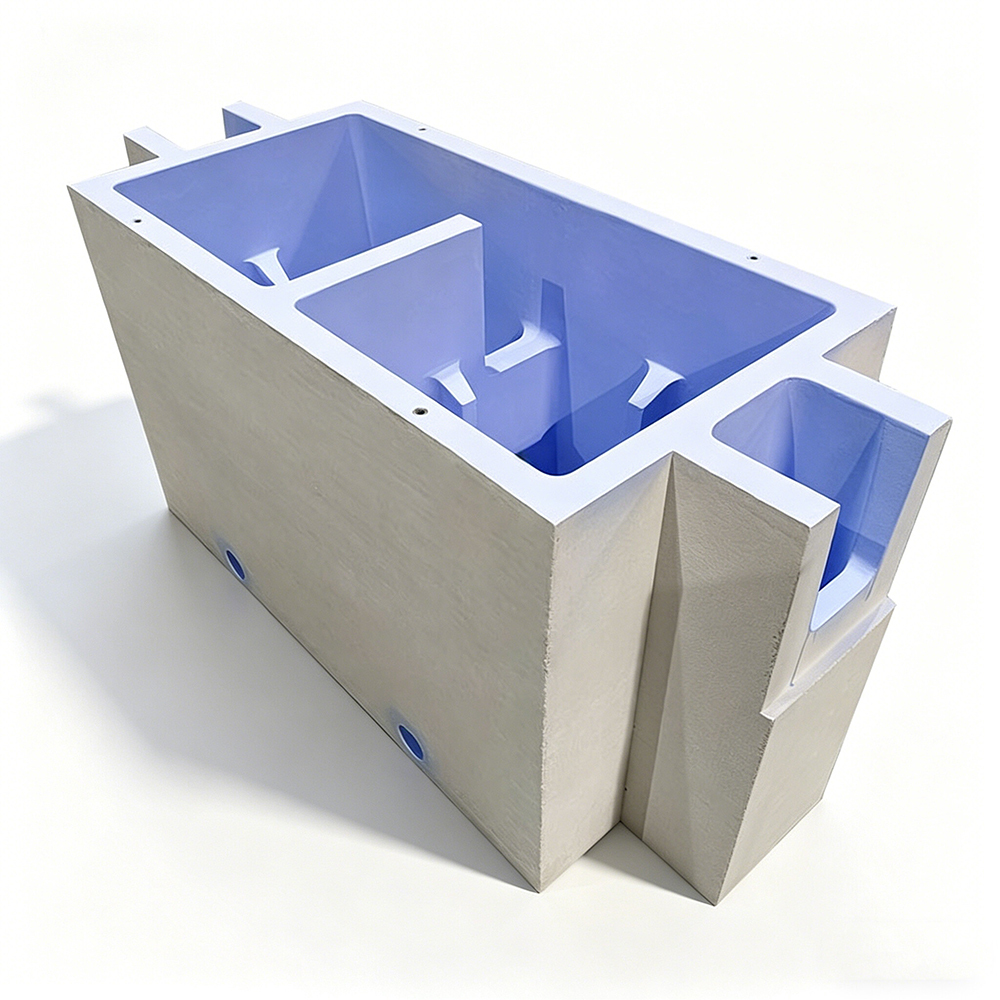

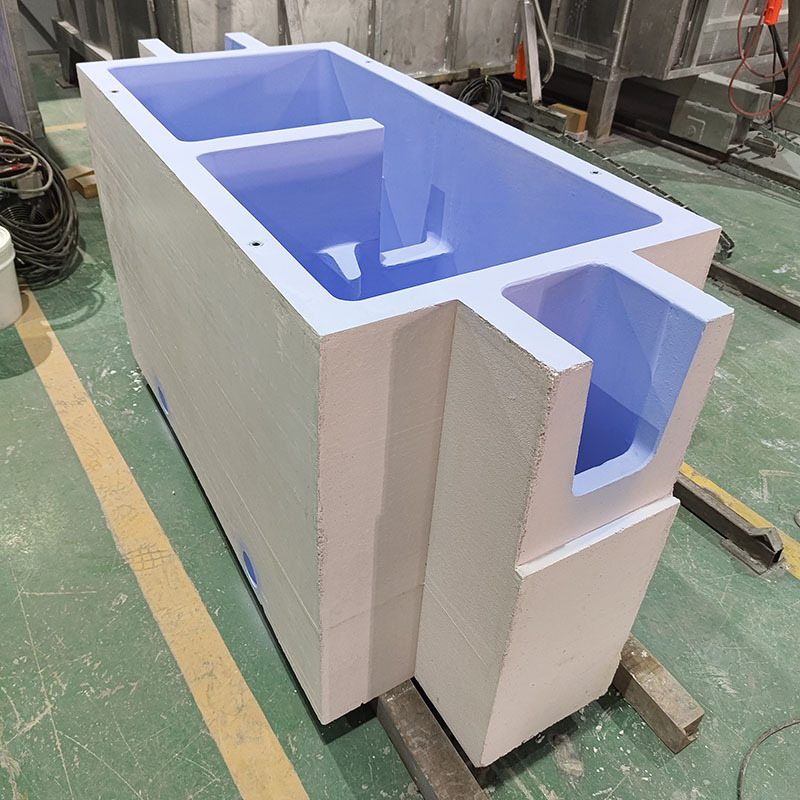

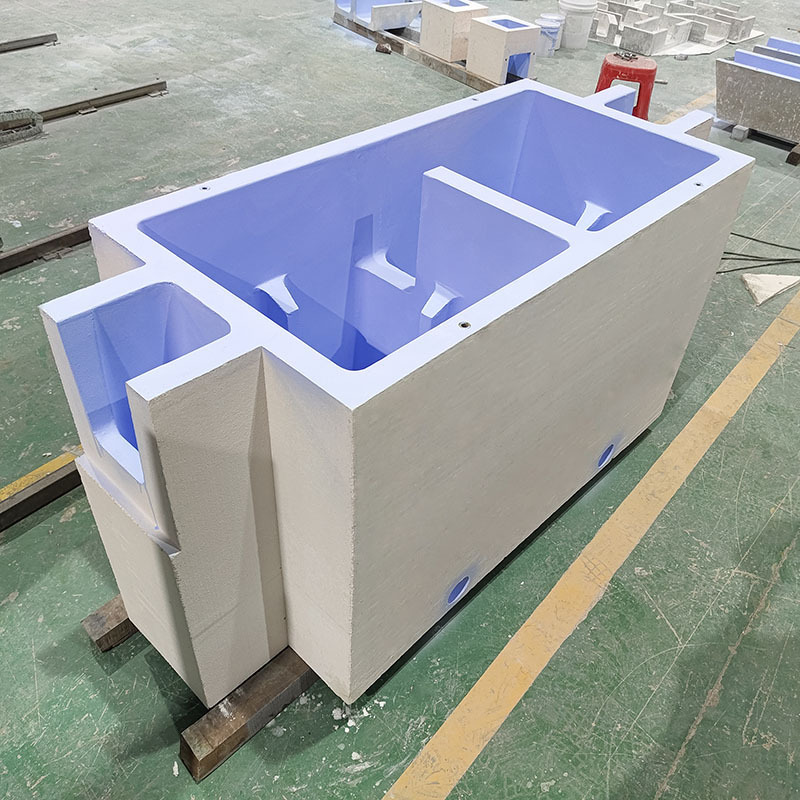

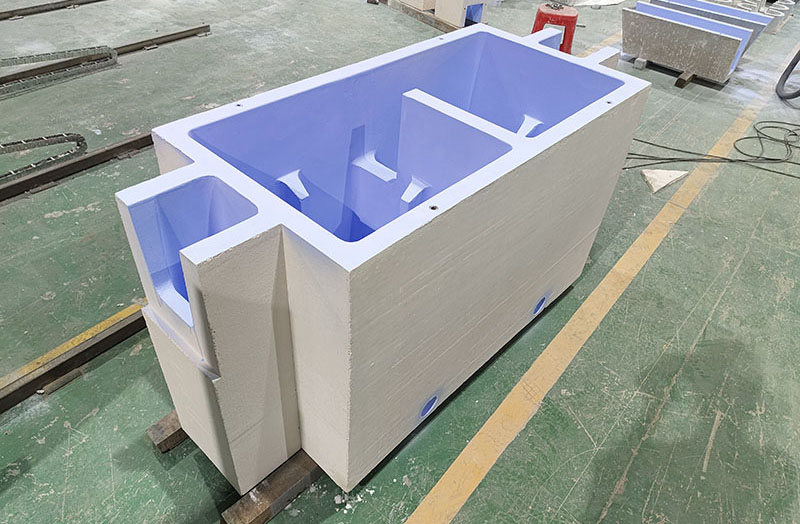

H1：Dual-Chamber Aluminum Filtration Box for Molten Aluminum Filtration
In aluminum casting production, molten aluminum quality has a direct impact on casting performance, surface quality, mechanical properties, and production stability. To reduce non-metallic inclusions and improve molten aluminum cleanliness, a reliable filtration system is required before the aluminum melt enters the casting process.
This field application features a custom-designed dual-chamber aluminum filtration box developed for an aluminum production line. The system is designed to provide continuous molten aluminum filtration while matching the customer's existing aluminum launder and production-line layout.
The aluminum plant required a filtration solution that could be integrated directly into its existing molten aluminum transfer system.
The main requirements included:
Because the available installation space and aluminum melt flow path were already defined, a standard filtration box could not fully match the customer's requirements.
Longzhyi therefore designed the filtration box according to the actual production-line dimensions and molten aluminum flow direction.

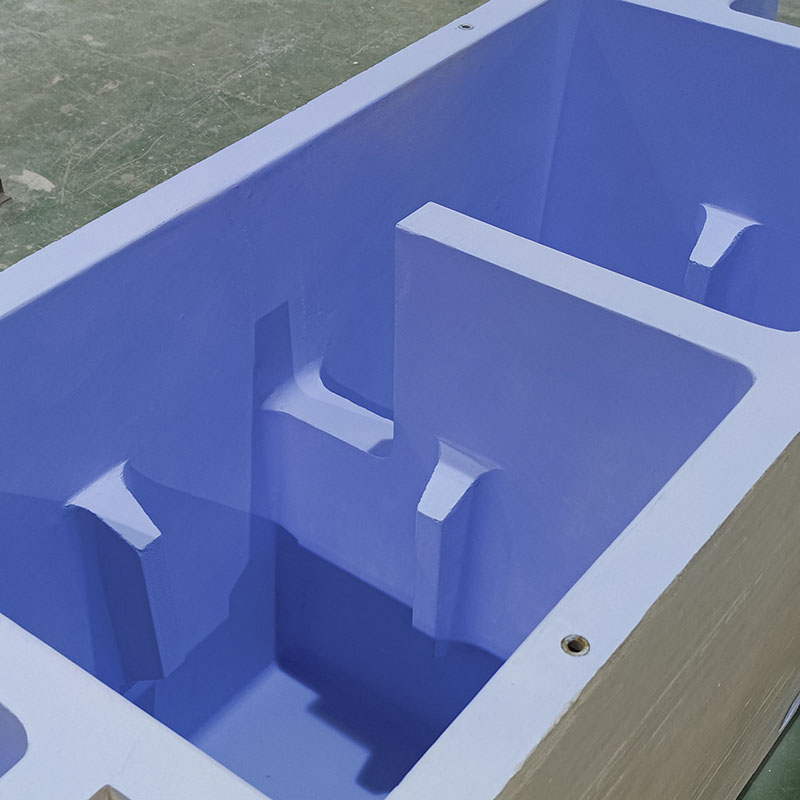

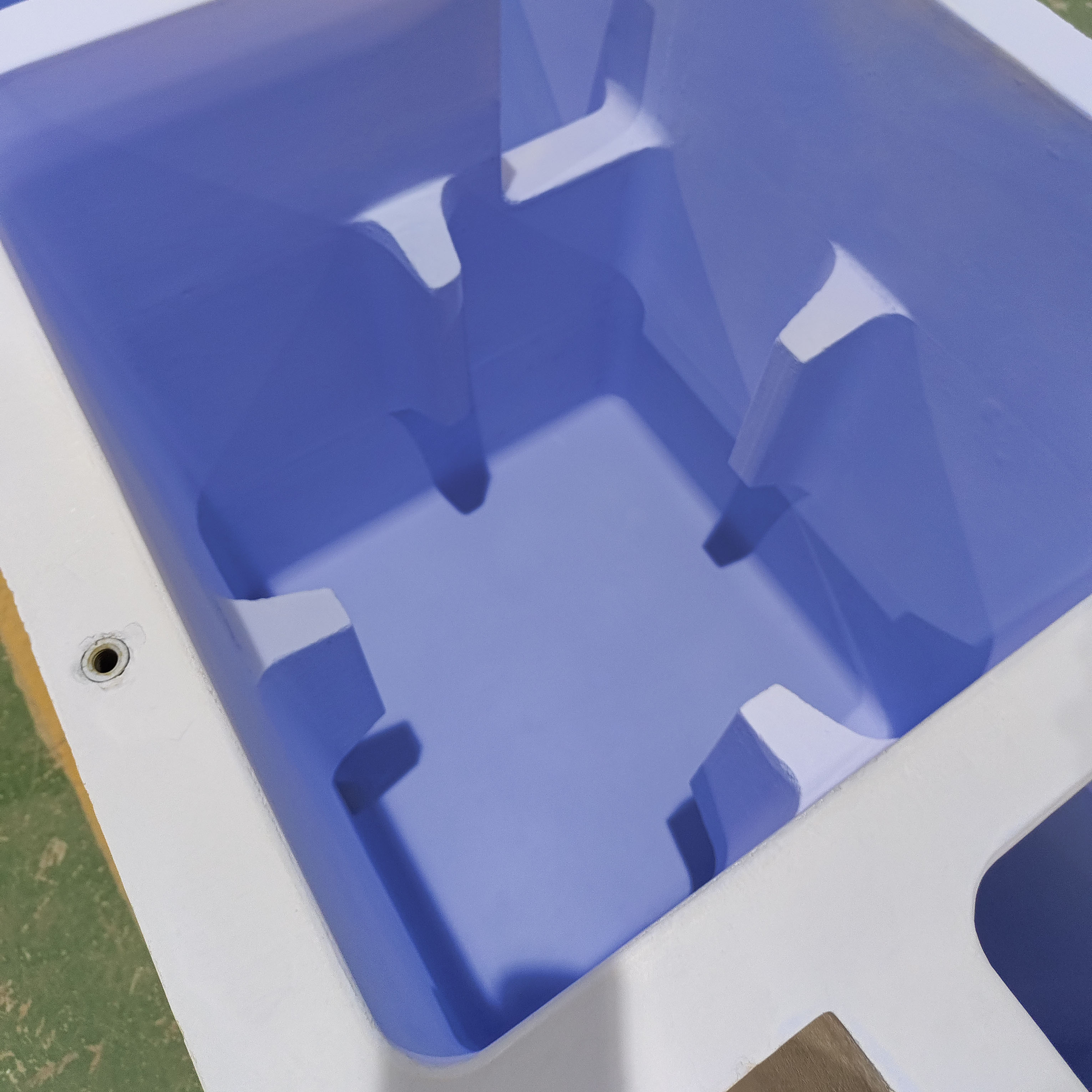

The filtration box adopts a dual-chamber structure. Molten aluminum enters the first chamber through the inlet launder and passes through the filtration area before flowing into the second chamber and continuing to the downstream casting process.
The two-stage chamber design provides a controlled molten aluminum flow path and allows the filter element to work under relatively stable operating conditions.
Depending on the production requirements, the filtration box can be configured with suitable filter elements, refractory materials, and internal flow structures.
The main structure includes:
The actual configuration can be adjusted according to the aluminum alloy, melt temperature, casting process, flow rate, and available installation space.
The filtration box was designed to be installed directly within the existing molten aluminum transfer system.
As shown in the field application, molten aluminum flows from the upstream launder into the filtration box. The internal structure controls the flow path and guides the melt through the filtration section before it moves toward the downstream casting equipment.
This integrated design helps avoid unnecessary changes to the existing production line.
For aluminum plants, this is particularly important because replacing or significantly modifying an existing molten aluminum transfer system can increase installation time and production disruption.
Longzhyi focuses on production-line-based design rather than simply supplying a standard filtration box. The dimensions, inlet and outlet positions, internal structure, and refractory configuration can be developed according to the customer's actual operating conditions.
During aluminum melting and transfer, non-metallic inclusions such as oxide films and other impurities may enter the molten metal. If these inclusions are not effectively controlled, they can negatively affect downstream casting quality.
A properly designed aluminum filtration system can help reduce these inclusions before the molten aluminum enters the casting process.
The dual-chamber aluminum filtration box provides a controlled filtration path while maintaining continuous molten aluminum transfer.
For applications requiring higher cleanliness, the filtration system can also be integrated with other molten aluminum treatment equipment, such as:
This allows the filtration box to become part of a complete molten aluminum treatment system.
One of the key advantages of this project is the customized design.
Instead of selecting a filtration box only according to a catalog size, Longzhyi can design the system according to the actual production conditions of an aluminum plant.
Important design factors include:
Production capacity:
The filtration system can be designed according to the required molten aluminum flow rate.
Aluminum alloy:
Different alloys and casting processes may have different melt-treatment requirements.
Molten aluminum temperature:
The refractory and filter configuration should be suitable for the operating temperature.
Installation dimensions:
The inlet, outlet, overall length, width, and height can be customized according to the existing production line.
Flow direction:
The internal flow structure can be designed according to the upstream and downstream equipment.
Maintenance requirements:
The filtration area can be designed to facilitate filter replacement and routine maintenance.
This project demonstrates Longzhyi's ability to provide custom aluminum filtration equipment for real aluminum production lines.
From production-line layout and molten aluminum flow analysis to filtration box design and refractory configuration, Longzhyi works with aluminum plants to develop suitable solutions for their specific operating conditions.
Whether you need a dual-chamber aluminum filtration box, molten aluminum filter box, aluminum launder, or complete molten aluminum filtration and degassing system, the equipment can be customized according to your production requirements.
Looking for a customized aluminum filtration box for your production line?
Contact Longzhyi with your existing launder dimensions, molten aluminum flow rate, alloy information, and installation requirements. Our engineering team can develop a filtration solution based on your actual production conditions.
