Three-layer composite system for low-loss, anti-stick, long-life molten aluminum transfer — engineered for casting precision, energy efficiency & zero-downtime integration.
Engineered for aluminum smelters, ingot casters, and alloy producers demanding zero thermal compromise, this triple-layer transfer launder eliminates temperature decay, prevents aluminum adhesion, and sustains structural integrity across 12+ months of continuous operation. Unlike standard troughs, its integrated steel shell / insulation / refractory lining architecture delivers measurable ROI through reduced energy consumption (≤5℃/m loss), minimized slag buildup, and elimination of unplanned downtime — backed by full on-site layout engineering and installation support.

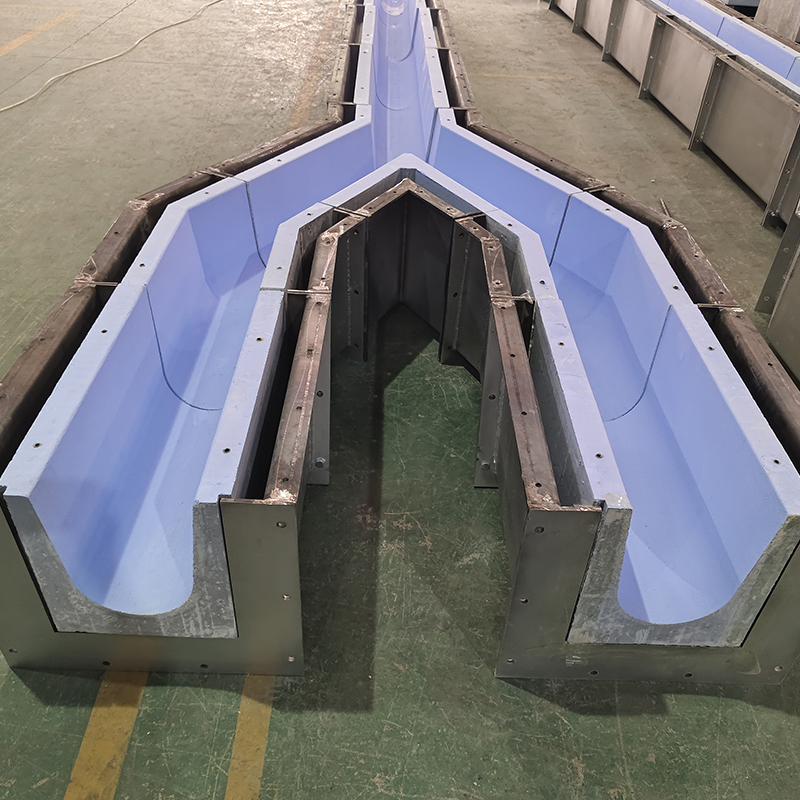

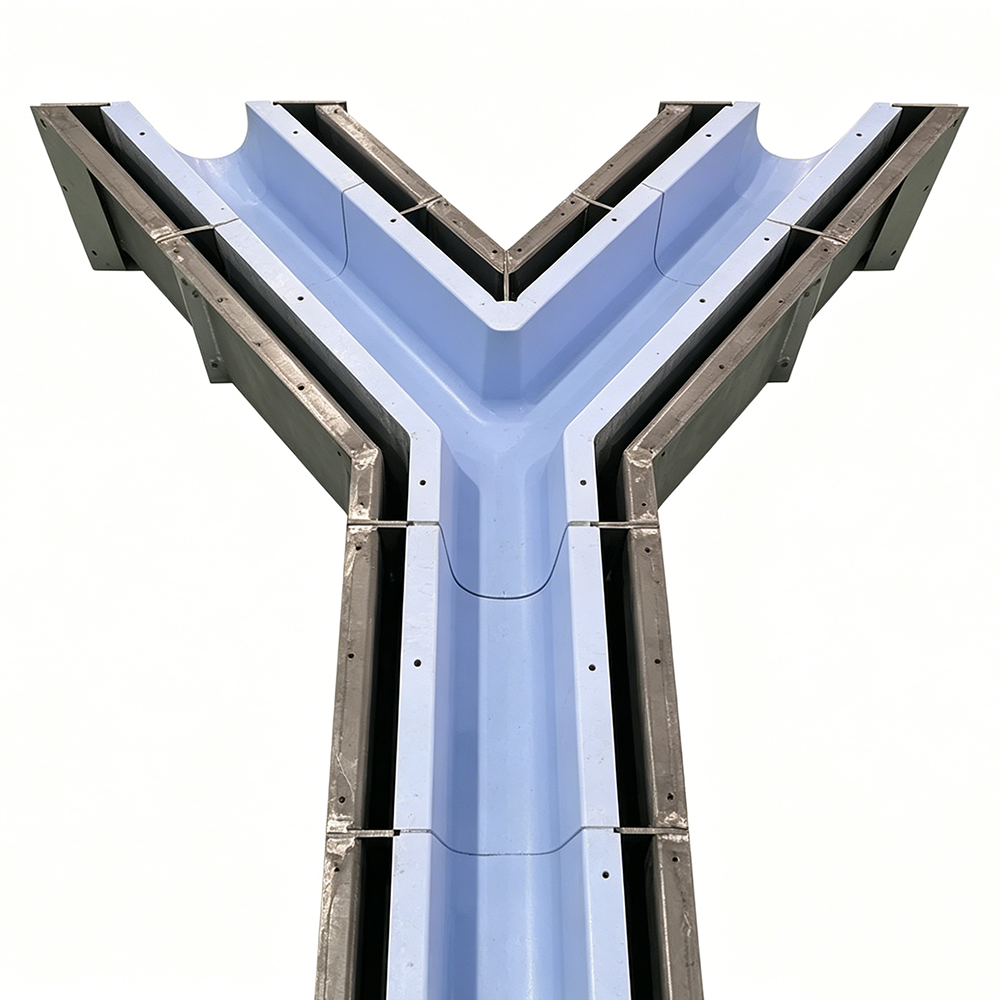

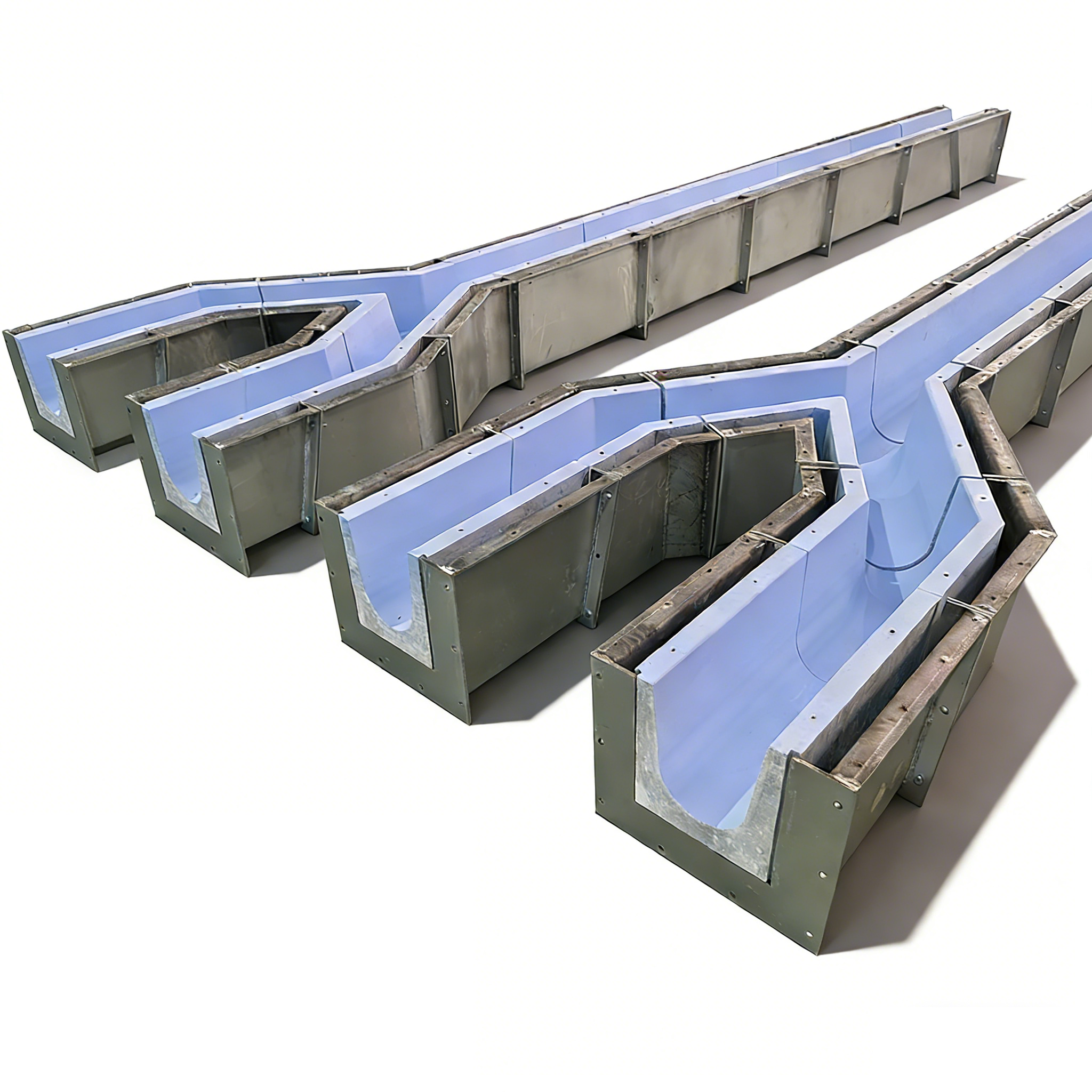

Designed for seamless integration into greenfield or retrofit casting lines, it accepts custom lengths (1–20m), bending radii, slope gradients (0.5–1.5%), and interface connections — all validated via pre-installation thermal modeling and site survey.

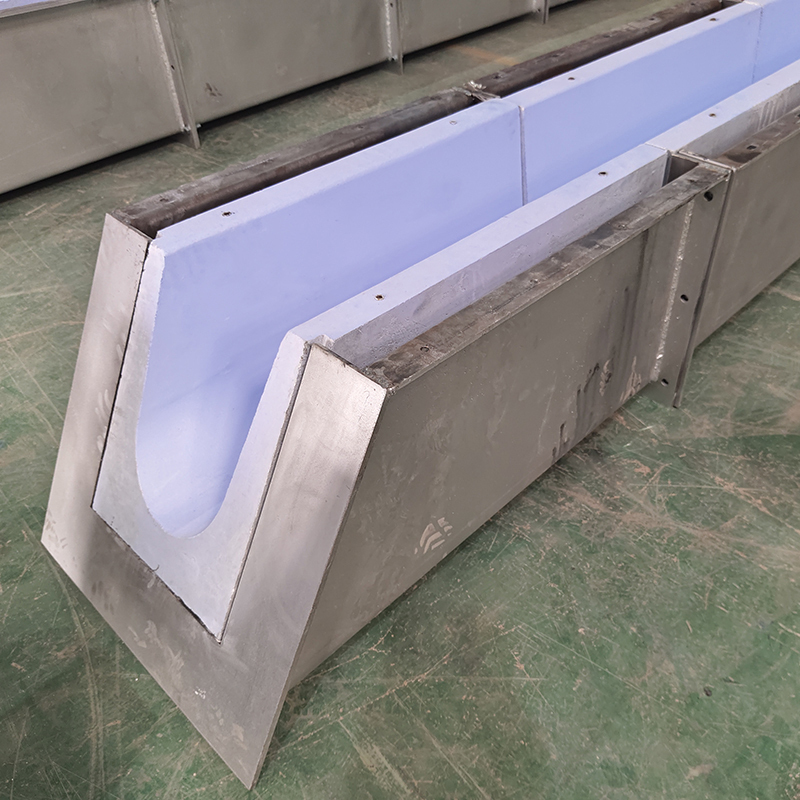

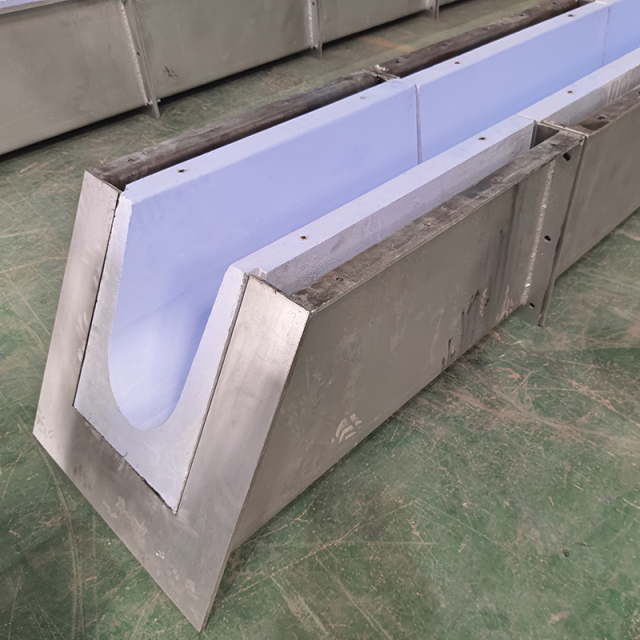

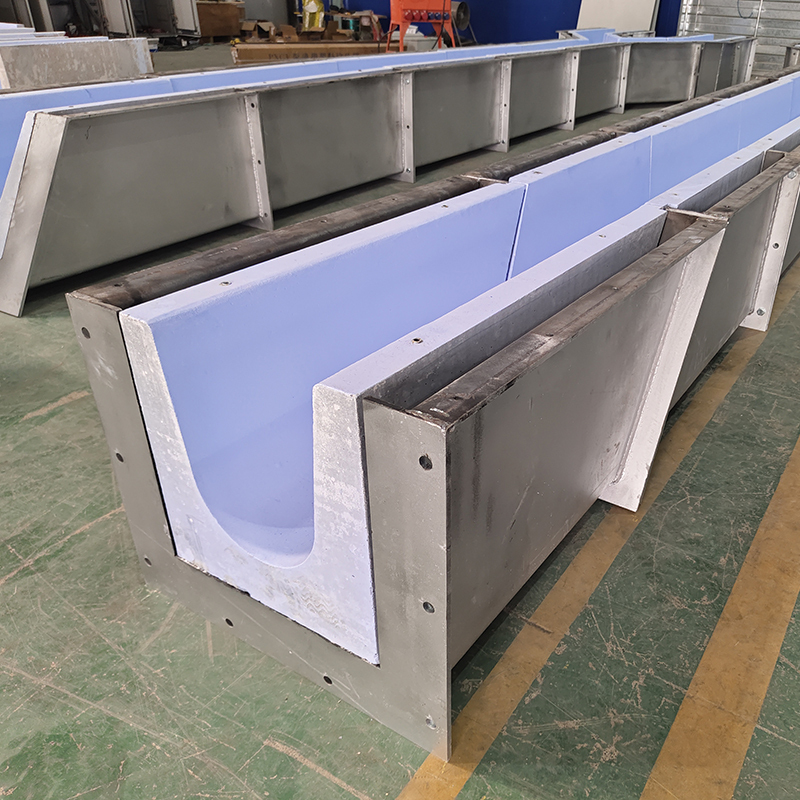

Multi-layer insulation (aluminum silicate fiber board + optional nano-material) combined with optimized U-shaped geometry ensures ≤5℃ temperature drop per meter — maintaining stable 700–800℃ melt flow for consistent casting quality and up to 18% energy reduction vs. conventional systems.
High-alumina castable / corundum / Si₃N₄-bonded SiC lining with optional boron nitride (BN) coating resists aluminum wetting and dross adhesion. Surface smoothness (Ra ≤0.8μm) enables >95% slag-free flow and reduces cleaning cycles by 70% versus standard linings.
From 3D workshop layout validation and thermal simulation to modular prefabrication, logistics coordination, and certified on-site installation — including leveling, joint sealing, thermocouple integration, and commissioning verification — delivered under single-point accountability.
Transfer from holding furnace to casting wheel or DC caster — critical for minimizing oxide inclusions in high-purity cathode slabs.
Handles fluctuating alloy compositions and higher impurity loads — refractory lining chemically inert to Fe, Si, Mg, and Mn-rich melts.
Precision temperature control supports tight tolerances for automotive, aerospace, and electronics-grade alloys (e.g., 6061, 7075, A380).
| Parameter Category | Parameter Name | Standard Parameters | Key Feature |
|---|---|---|---|
| Structure | Shell Material | Q235 carbon steel | Welded monocoque frame; yield strength ≥235 MPa |
| Composite Design | Steel shell + insulation layer + refractory lining | Load-bearing + thermal barrier + erosion-resistant triad | |
| Thermal Performance | Temp. Drop (700–800℃) | ≤5℃ per meter | Validated via infrared thermography & thermal modeling |
| Surface Temp. (Shell) | ≤80℃ at ambient 25℃ | Safe operator environment; no external cooling required | |
| Insulation Thickness | 50–120 mm (standard: 60–80 mm) | Material options: ceramic fiber board / lightweight brick / nano-insulation | |
| Refractory Lining | Material Options | High-alumina castable / corundum / Si₃N₄-bonded SiC | Chemically inert; no Al reaction or particle shedding |
| Thickness | 80–150 mm (120–150 mm recommended for ≥5 m) | Balances erosion resistance, thermal mass & weight | |
| Optional Coating | Boron nitride (BN) surface treatment | Further reduces adhesion; extends cleaning interval by 40% | |
| Functional Design | Conveying Capacity | 1–45 tons/hour | Scales with cross-section and slope; customizable flow rate |
| Connection Method | Flange + high-temp graphite gasket | Leak-proof seal; withstands thermal cycling (−20℃ to 800℃) | |
| Optional Interfaces | Thermocouple ports / degassing/filtration taps / gate-type diversion | Plug-and-play integration with inline purification units |
A: Yes. We conduct full on-site surveys using laser scanning and CAD modeling to deliver fully customized length, cross-section geometry, slope, and connection interfaces — ensuring seamless integration without rework or downtime.
A: We select from three proven formulations based on your operating conditions: high-alumina castable (cost-effective), fused corundum (high erosion resistance), or silicon nitride bonded silicon carbide (maximum thermal shock & corrosion resistance). All are BN-coatable and rigorously tested for non-wetting behavior.
A: Through multi-layer thermal design: optimized insulation thickness (up to 120mm), low-conductivity nano-materials, insulated cover plates (standard), and precise geometry that minimizes surface-area-to-volume ratio — all validated by thermal imaging before shipment.
A: Yes. Our certified engineers travel globally for turnkey installation — including foundation verification, leveling, joint sealing, thermocouple integration, and commissioning testing. We manage customs, logistics, and local compliance documentation.
A: Directly compatible with melting furnaces, holding furnaces, online degassing units (e.g., Alpur, FLO, MINT), ceramic foam filter boxes, and multi-nozzle casting machines — with standardized flange interfaces and optional diversion mechanisms.
Share your workshop layout, throughput requirements, and target temperature stability — we’ll deliver a validated technical proposal within 48 hours.
