An aluminum launder is an important component in aluminum casting and melt handling systems. It is designed to transport molten aluminum safely and continuously from a furnace, holding furnace, or melting unit to the next stage of the casting process.
A properly designed molten aluminum launder helps control metal flow, reduce heat loss, minimize turbulence, and improve the overall stability of the aluminum casting process.
But how does an aluminum launder actually work?
This article explains the working principle, main components, material requirements, and key factors to consider when selecting an aluminum launder for an industrial casting line.

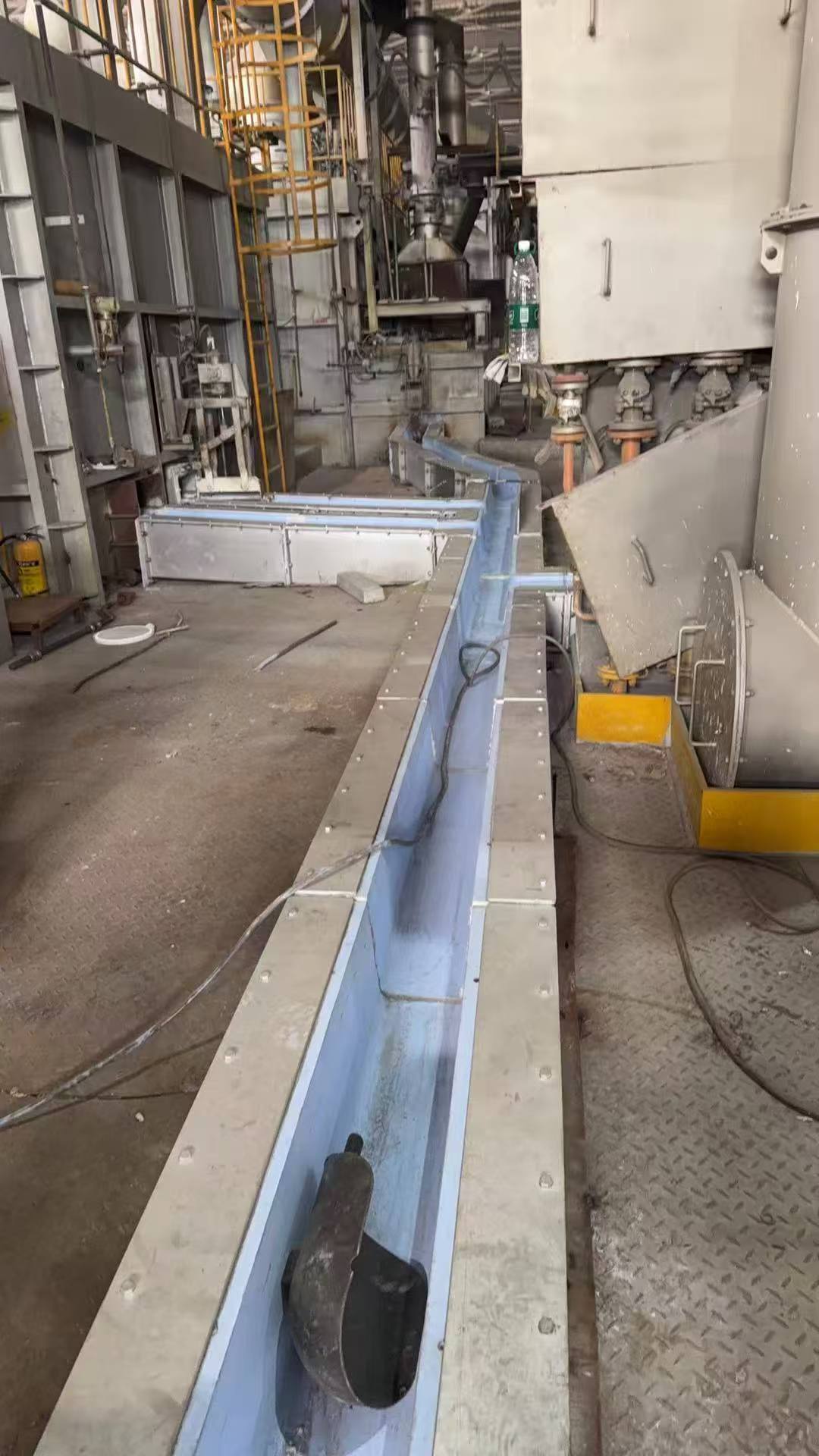

An aluminum launder is a refractory-lined channel used to transfer molten aluminum between different processing or casting units.
Because molten aluminum is typically handled at temperatures around 650–800°C, the launder must withstand high temperatures while maintaining a stable and controlled metal flow.
Unlike ordinary metal channels, industrial launders are normally manufactured using high-temperature refractory materials with insulation and a protective working surface.
The basic operating principle of an aluminum launder is relatively simple.

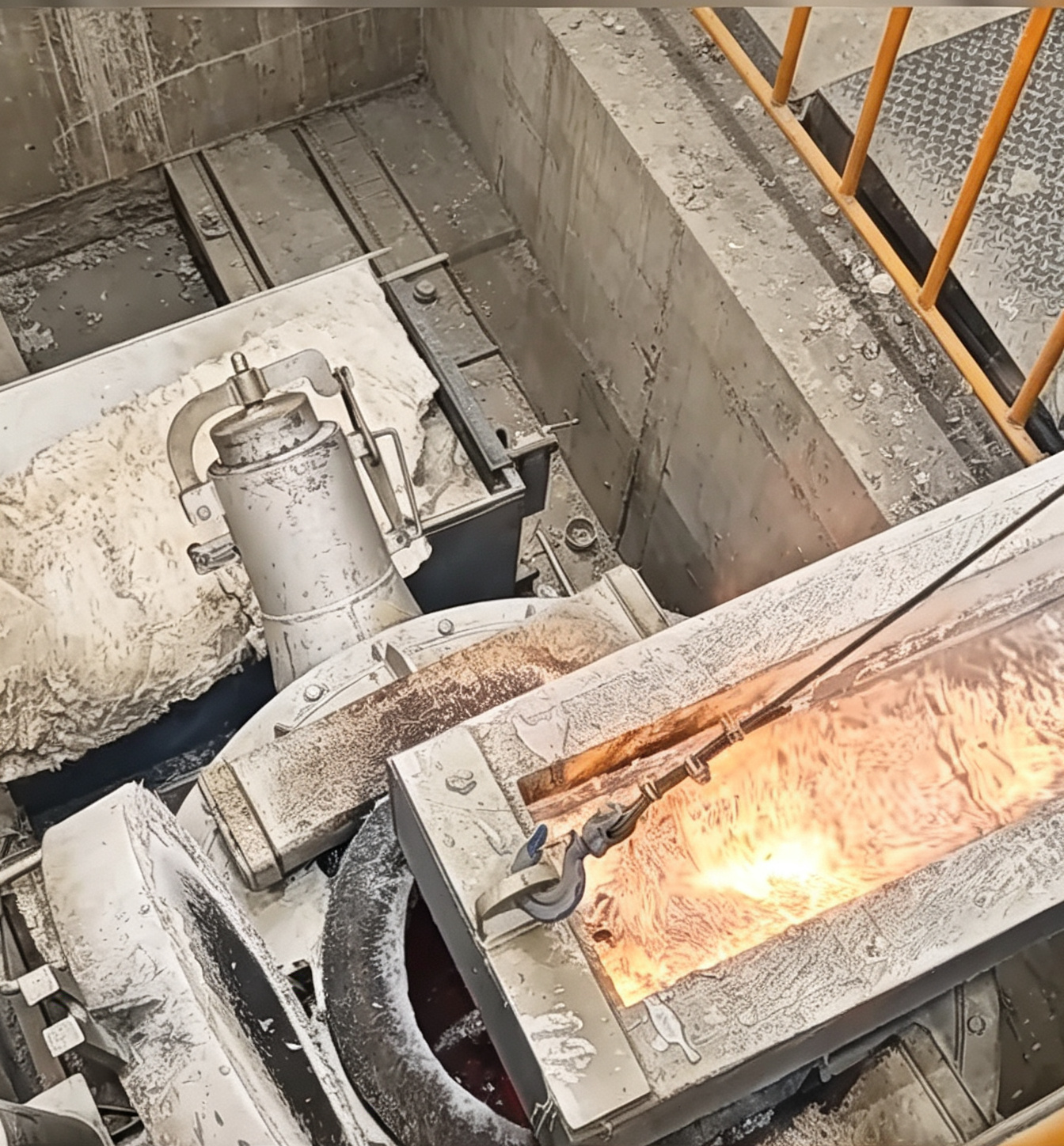

Molten aluminum flows from a higher-level source into the launder and is transported through a refractory-lined channel toward the next processing or casting stage.
The process can be divided into five main steps.
Molten aluminum leaves the furnace or holding furnace through an outlet and enters the launder.
The inlet section must be properly designed to avoid excessive turbulence, splashing, and sudden changes in flow velocity.
Stable metal entry is particularly important because excessive turbulence can increase the possibility of oxide formation and entrainment.
Once molten aluminum enters the launder, the channel guides the metal toward the next stage.
The geometry of the launder—including its width, depth, slope, and internal configuration—affects the flow rate and flow stability.
A well-designed launder should provide:
For longer casting lines, the launder may contain several sections or customized transitions to accommodate changes in direction and elevation.
Molten aluminum needs to remain within a suitable temperature range during transportation.
If the launder loses too much heat, the aluminum temperature can decrease significantly before reaching the casting equipment. This may affect metal fluidity and casting stability.
For this reason, aluminum launders commonly use insulating refractory structures to reduce heat loss.
The design may include:
The exact refractory structure depends on the operating temperature, alloy, flow rate, launder length, and casting application.
In some aluminum casting systems, the launder is not simply a transportation channel.
It can also be integrated with molten aluminum filtration and treatment equipment.
For example, a casting line may be arranged as:
Melting Furnace → Holding Furnace → Degassing → Filtration → Launder → Casting Machine
In this configuration, the launder connects different treatment stages and helps deliver treated aluminum to the casting equipment.
Depending on the system design, ceramic foam filters or other filtration components can also be incorporated into the molten metal flow path.
At the end of the launder, molten aluminum enters the casting machine, mold, or other downstream equipment.
The outlet geometry is important because the final flow condition can influence the stability of the casting process.
A properly designed outlet helps maintain a consistent supply of molten aluminum without excessive turbulence or uncontrolled splashing.
Although designs vary between applications, a typical molten aluminum launder system may include several important components.
The refractory lining is the primary surface that contacts molten aluminum.
It must withstand high temperatures and repeated thermal cycles while resisting chemical attack and erosion.
An insulation layer is generally installed behind the working refractory.
Its main function is to reduce heat loss and help maintain the temperature of the molten aluminum during transportation.
The external shell provides mechanical support for the refractory and insulation materials.
Industrial launder shells may be manufactured from steel or other suitable structural materials.
Some launder systems use covers to reduce heat loss and protect the molten aluminum from external contamination.
Covered launders can be particularly useful for long-distance molten metal transfer.
Depending on the casting process, the launder may be connected to or integrated with filtration and melt treatment equipment.
This allows the system to combine molten aluminum transportation with other melt-processing operations.
The design of an aluminum launder directly affects the efficiency and stability of molten metal transportation.
An improperly designed launder can cause several problems.
Poor insulation can cause molten aluminum to lose too much heat during transportation.
This may lead to reduced metal fluidity and casting instability.
Sharp corners, sudden changes in cross-section, or inappropriate slopes can increase turbulence.
Turbulent flow may promote oxide entrainment and negatively affect melt cleanliness.
If the refractory material is not suitable for the operating conditions, prolonged contact with molten aluminum can cause erosion or degradation.
This can shorten the service life of the launder and potentially introduce unwanted particles into the melt.
Cracks, damaged joints, or poor installation can create serious molten metal leakage risks.
Regular inspection and proper refractory installation are therefore essential.
The material selection depends on the operating conditions and application.
Common construction approaches include a combination of:
The working surface should be compatible with molten aluminum and provide sufficient resistance to thermal shock, erosion, and chemical interaction.
For demanding applications, the refractory formulation should be selected according to the aluminum alloy, operating temperature, metal flow rate, and expected service life.
The terms aluminum launder, molten aluminum launder, and molten aluminum channel are often used to describe similar equipment.
However, an industrial launder system can be more than a simple channel.
This means that industrial launders are often custom-designed rather than standard off-the-shelf products.
When selecting an aluminum launder for a casting plant, several technical parameters should be considered.
The launder must have sufficient capacity for the required metal flow rate.
An undersized channel can restrict flow, while an oversized design may increase unnecessary heat loss.
The refractory and insulation system should be suitable for the actual operating temperature and thermal cycling conditions.
Longer launders require more effective insulation and careful thermal management.
The slope affects molten metal velocity and should be designed according to the required flow conditions.
Different alloys and melt conditions can influence refractory compatibility and service life.
If the production line includes molten aluminum degassing or filtration, the launder should be designed as part of the complete melt treatment system rather than as an isolated component.
Proper maintenance can significantly extend launder service life.
Before operation, operators should inspect the refractory lining for:
The launder should also be properly dried and preheated according to the refractory manufacturer's recommendations before molten aluminum is introduced.
During operation, operators should monitor:
Damaged refractory sections should be repaired or replaced before they create a safety or production problem.
The main purpose of an aluminum launder is to safely and continuously transport molten aluminum between the furnace, melt treatment equipment, filtration system, and casting machine while minimizing heat loss and flow turbulence.
A molten aluminum launder typically consists of a structural shell, refractory working lining, and insulating materials. The exact refractory composition depends on the operating temperature, alloy, flow rate, and application.
Yes. Some temperature loss normally occurs during molten aluminum transportation. However, proper refractory insulation and launder design can significantly reduce unnecessary heat loss.
Yes. A launder can be integrated into an aluminum melt treatment line with equipment such as a molten aluminum degassing system and ceramic foam filtration unit.
Yes. Industrial aluminum launders are commonly customized according to furnace outlet height, casting machine position, flow rate, transfer distance, refractory requirements, and production-line layout.
An aluminum launder plays an important role in the safe and stable transportation of molten aluminum.
Its job is not simply to move metal from one location to another. A properly engineered launder system must also control molten metal flow, minimize heat loss, withstand high temperatures, protect melt cleanliness, and integrate effectively with downstream casting and melt treatment equipment.
For aluminum plants, choosing the correct refractory structure, dimensions, insulation, slope, and configuration is essential for achieving reliable long-term operation.
If your production line requires a custom molten aluminum launder, the system should be designed according to your actual furnace, casting machine, metal flow rate, temperature, and melt treatment requirements rather than using a one-size-fits-all solution.
